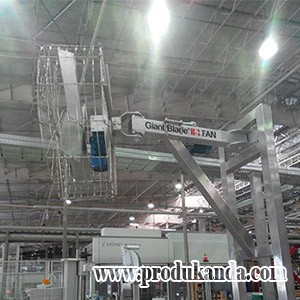

This is the fan that started the HVLS revolution
The fan is GIANT BLADE original HVLS fan, and today’s standard for low cost, high efficiency climate control, delivering the most air movement of any HVLS fan on the market. Featuring blade diameters up to 2 meters is ideal for large facilities
Installing it is a simple upgrade for any existing facility, and a smart, economical, green choice for a clean building. It creates a comfortable & productive environment for work, play, learning and living around the world.
technical Specifications :
| Model Number | H1, H2, H3 |
| Fan Diameter | 1.0; 1.5 ; 2.0 Meters |
| Number of Blades | 4, 6, 8 |
| Airblade Finish | Mill Finish Alumunium |
| Fan Weight | 80, 120, 150 Kg |
| Motor Power | 3/4; 1; 1,5 Hp |
| Maximum speed (Rpm) | 200 |
| Input Power and required breaker | 200 – 250 VAC, 50 Hz, 1Ф, 10A/15A/20A 200 250 VAC, 50 Hz, 3Ф, 10A/15A/20A |
| Controller | Inverter |
| Fire Relay | Included |
| Mount Standard | Ceiling (Large I-beam, spanned angle iron, small/large L-bracket, Z-purlins); Column |
| Sound Level (Maximum Speed) | 60dB |
| Minimum airfoil clearances required |
Horizontal orientation: 1.2m between and ceiling deck |
| Certifications (entire fan) | ANSI, CE |
Features & Benefits
- Available in a compact 1.0; 1.5; 2.0 Meter
- Ceiling or column mounted
- Flexible mounting system for costumized, directional airflow
- Flexible pivoting joints allow head angle adjustments
- Inverter Speed Controller
- CE Certified
